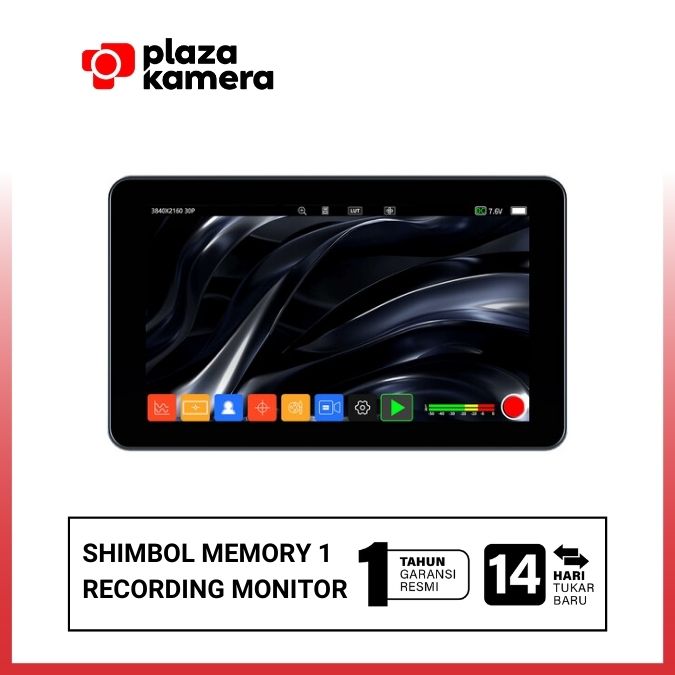

Shimbol Memory I Touchscreen Recording Monitor

Rp 4.499.000

  • 1920 x 1080 Touchscreen Display
  • Up to DCI 4K25 HDMI Video Input
  • 1080p60 Recording to SD Card
  • 2000 cd/m² Brightness
  • HDR Monitoring, 3D LUT Support
  • Waveform, Vectorscope, Focus Peaking
  • Markers, False Color, Color Temperature
  • Embedded Audio, 3.5mm Headphone Port
  • Power via L-Series/F970 or DC Input
  • 1/4″-20 Thread & Shoe Mount Included

Stok Tersedia

Subsidi Ongkir untuk pembelian Minimal 500rb

  • Jaminan asuransi untuk kehilangan
  • Pengiriman 2×24 Jam
  • Order sebelum 14:00 WIB (Senin-Sabtu)
    untuk pengiriman hari yang sama.
Guaranteed Safe Checkout

Shimbol Memory I Touchscreen Recording Monitor

Shimbol Memory I Touchscreen Recording Monitor memungkinkan Anda untuk melihat hingga input DCI 4K25 dan merekam video 1080p60 dengan LUT 3D yang diterapkan. Monitor ini dilengkapi layar layar sentuh 5,5 inci 1920 x 1080, satu input HDMI 2.0, dan jack headphone 3,5 mm untuk mengeluarkan audio yang disematkan. Fitur monitor mencakup kecerahan 2000 cd/m², HDR dan LUT 3D, bentuk gelombang luma, vektorcope, zoom, pemuncakan fokus, dan fungsi tampilan tambahan.

Monitor Perekaman

Monitor Memory I memungkinkan Anda untuk melihat video DCI 4K25 dan merekam video 1080p60. Monitor ini mendukung aplikasi LUT langsung dengan kemampuan untuk mengunggah dan menyesuaikan LUT 3D.

Input HDMI

Hubungkan ke hampir semua camcorder atau kamera gaya sinema melalui input HDMI.
Memantau audio yang disematkan melalui jack headphone stereo 3,5mm.

HDR Internal

Memory I memiliki kompatibilitas HDR built-in, memungkinkan Anda untuk melihat dan menangkap rekaman bernuansa dengan rentang dinamis yang luas.

Dukungan LUT 3D

Memuat LUT 3D khusus melalui slot kartu microSD.

Pemasangan

Pasang Memory I menggunakan ulir 1/4″-20 bagian bawah atau gunakan adaptor sepatu yang disertakan.

Fitur Pencitraan

  • Pemuncakan fokus, warna palsu, pencahayaan.
  • Bidang cek, penanda yang dapat dipilih, dan penyesuaian RGB.
  • Zoom, pemilihan kurva gamma, dan banyak lagi.

Opsi Daya

Memberi daya pada Memory I menggunakan baterai Sony tipe L-series NPF970 atau memasukkan daya DC melalui port laras.

Isi Dalam Box:

  • Shimbol Memory I
  • SD Card
  • SD Card Holder
  • Tempered Screen Protector
  • HDMI Cable
  • Shoe Mount Adapter

Spesifikasi:

Display Size
5.5″ / 14.0 cm
Resolution
1920 x 1080
Touchscreen
Yes
HDR Compatibility
Hybrid Log Gamma
Video I/O
1 x HDMI (Unspecified Signal) Input
1 x HDMI (Unspecified Signal) Output
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Video Format
HDMI
DCI 4K: 25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Built-In Battery
No
Battery Type
1 x L-Series
Power Consumption
9 W (Maximum)
Mounting
1 x 1/4″-20 Female
Display
Panel Type
LCD
Display Size
5.5″ / 14.0 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2000 nits / cd/m2
Contrast Ratio
1200:1
HDR Compatibility
Hybrid Log Gamma
Pixels Per Inch (ppi)
400 ppi
Real-Time LUT Monitoring
HDR
Image Controls
False Color, Focus Peaking, Histogram, RGB Parade, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O
1 x HDMI (Unspecified Signal) Input
1 x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
Audio I/O
1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1 x Barrel Input
Other I/O
No
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
DCI 4K: 25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Gamma Curve
Rec709
Timecode Support
Yes
Recording
Pulldown Conversion
No
Camera Trigger
No
Pre-Roll Record
No
Encoding Formats
Up to 1920 x 1080
H.264 8-Bit 4:2:2 at up to 60 fps
Power
DC Input Power
6.5 to 16.8 VDC
Built-In Battery
No
Battery Type
1 x L-Series
Power Consumption
9 W (Maximum)
Mounting
1 x 1/4″-20 Female
Environmental
Environmental Protection
No
Certifications
No
Operating Temperature
22 to 82°F / -10 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Material of Construction
Metal
Dimensions
5.8 x 3.4 x 1″ / 146.6 x 87.6 x 26.5 mm
Weight
10.0 oz / 283 g
Packaging Info
Package Weight
1.235 lb
Box Dimensions (LxWxH)
10.2 x 5.6 x 1.8″
