Boya BY-WM8 Pro K2 – 2TX UHF Wireless Microphone

Boya BY-MP4 Audio MixerBoya BY-M1DM Dual Omnidirectional Lavalier Mic

Rp 3.190.000

Digital Companding
Hingga 48 Selectable channels
Dual-Channel
Transmission bandwidth hingga 32 MHz
Sinkronisasi nirkabel melalui inframerah
Locked-plug
Transmission Range hingga 100 meters

Garansi 6 Bulan Service

Tersedia

Berat : 1.5kg

SKU: 1321034 Audio & Aksesoris, Audio, Microphone Wireless, Top Recommend

Boya BY-WM8 Pro K2 – 2TX UHF Wireless Microphone

Boya BY-WM8 Pro K2 adalah UHF Dual-Channel Wireless Microphone System yang telah diupgrade untuk menangkap audio dengan subjek ganda, fitur layar LCD yang mudah dibaca, wide switching RF bandwidth, PLL-synthesized tuning dan digital companding circuitry. BY-WM8 Pro K2 ini cocok untuk berbagai aplikasi nirkabel seperti wawancara, pengumpulan berita elektronik (ENG), produksi bidang elektronik (EFP), produksi film, aplikasi bisnis dan pendidikan, dan banyak lagi.

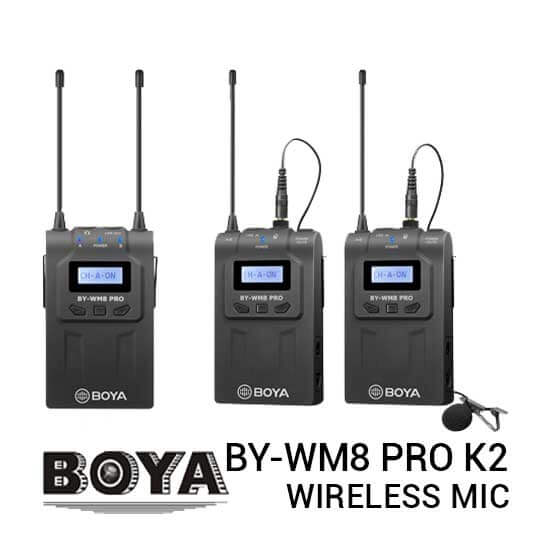

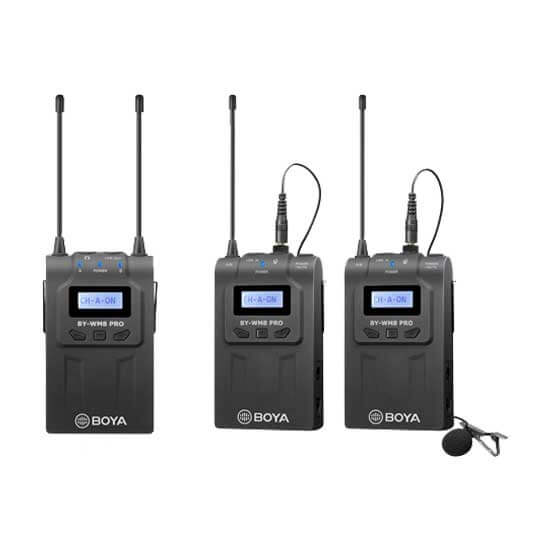

Sistem BY-WM8 Pro-K2 terdiri dari dua bodypack transmitter, camera-mount receiver, dan dua mikrofon lavalier omnidirectional. Juga disertakan dengan sistem ini adalah shoe-mount adapter, kabel output 1/8″ untuk XLR, kabel output 1/8 hingga 1/8″ tunggal, serta tas jinjing. Receiver dibangun dengan jack output mikrofon dan headphone. Bodypack transmitter termasuk jack MIC dan LINE IN jack.

Fitur Utama Boya BY-WM8 Pro K2

Digital Companding
Hingga 48 Selectable channels
Dual-Channel
Transmission bandwidth hingga 32 MHz
Sinkronisasi nirkabel yang mudah dan fleksibel antara transmitter dan receiver melalui inframerah
Menu operasi user friendly
Fungsi Mute
Locked-plug menghindari perubahan pengaturan yang tidak disengaja
Transmission Range hingga 100 meters

Ulasan Video

Spesifikasi Boya BY-WM8 Pro K2

System

Oscillator type:	PLL Synthesized Control Oscillator
Carrier Frequency Range:	576.4 MHz-599.9 MHz (Transmitter: A ) 568.6 MHz-592.1 MHz (Transmitter: B )
Channels:	48
Frequency response:	40 Hz to 18 kHz (+/-3dB)
Operation range:	100m (300')(without obstacle)
Operating temperature:	14° F to 122° F (-10℃ to +50℃)
Storage temperature:	14° F to 131° F (-10℃ to +55℃)

Transmitter：

RF output power:	≤10 mW
Antenna:	1/4λ wire antenna
Spurious emission:	250 nW or less
Audio input connector:	3.5mm mini jack
Reference audio input level:	–60 dBV (MIC input, 0 dB attenuation)
Reference deviation:	±5 kHz (–60 dBV, 1 kHz input)
Input frequency range:	20 Hz-20 KHz
Distortion:	0.5% or less
Power supply:	Two AA size batteries
Operation time:	About 6 hours
Dimensions:	208(H) × 67(W) × 29(L)mm
Weight:	80g without batteries

Receiver：

Antenna:	1/4λ wire antenna
Audio input connector:	3.5mm mini jack
Signal-to-noise ratio:	70 dB or more
Distortion:	0.5% or less
Headphone output level:	30mW (16 Ω)
Audio output level:	–60 dBV
Power supply:	Two AA size batteries
Operation time:	About 4 hours
Dimensions:	208(H) × 67(W) × 29(L)mm
Weight:	90g without batteries

Lavalier Microphone：

Transducer:	Back electret Condenser
Polar pattern:	Omni-directional
Frequency Range:	35Hz ~ 18 KHz
Signal / Noise:	74dB SPL
Sensitivity:	-30dB +/-3dB / 0dB=1V/Pa, 1 kHz
Connector:	3.5mm locking mini plug
Length:	1.2m (4’)
