Boya BY-W4 Wireless Microphone

Rp 2.890.000

  • For Content Creation, Mobile Journalism
  • 4-Person Shoots with Camera or Phone
  • 4 x Transmitters with Built-In Mics
  • Four-Channel Receiver
  • 98′ Transmission Distance
  • 3.5mm TRRS Port, USB-C Charging
  • Gain Control, LED Indicators
  • 7-Hour Battery Life

Stok Tersedia

Subsidi Ongkir untuk pembelian Minimal 500rb

  • Jaminan asuransi untuk kehilangan
  • Pengiriman 2×24 Jam
  • Order sebelum 14:00 WIB (Senin-Sabtu)
    untuk pengiriman hari yang sama.
Guaranteed Safe Checkout

Boya BY-W4 Wireless Microphone

Boya BY-W4 Wireless Microphone dengan mikrofon omnidirectional built-in. Sistem ini tidak hanya mencakup empat pemancar dengan faktor bentuk yang sangat ringkas dan klip belakang untuk dipasang pada kerah baju talent Anda, tetapi juga mencakup receiver empat saluran dengan konektivitas TRRS 3,5 MM. Semua komponen dapat berkomunikasi hingga jarak 98′ melalui frekuensi 2,4 GHz.

Pantau audio Anda dan rekam secara bersamaan menggunakan kabel pemantauan TRS 3,5 mm male ke TRRS dual female yang disertakan. Konektor jantan dipasang ke port TRRS 3,5 mm receiver Anda, sedangkan dua konektor betina menerima koneksi input headphone atau komputer Anda. Gunakan indikator LED pada setiap komponen untuk melihat status koneksi dan baterai Anda. Kontrol onboard pada setiap pemancar memungkinkan Anda untuk menyesuaikan tingkat penguatan atau menonaktifkan unit. Baterai isi ulang internal di semua unit memberi daya pada sistem hingga 7 jam sekaligus, sementara port pengisian daya USB-C akan mengisi ulang daya ketika habis.

Sekilas tentang Fitur

  • Frekuensi 2,4 GHz, jarak transmisi 98′
  • Pemancar clip-on hanya berbobot 0,4 ons
  • Merekam dalam konfigurasi dua orang atau empat orang
  • Dapatkan kontrol, mode bisu
  • Indikator LED
  • Kabel TRRS ke TRS 3,5 mm, kabel TRRS jantan 3,5 mm ke kabel TRRS betina ganda
  • Gunakan kabel pemantauan untuk mendengarkan audio dalam waktu nyata
  • Kabel pengisian daya USB-C, kaca depan berbulu, tas jinjing

Additional information

Weight 1 kg

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Spesifikasi:


































Wireless Technology
Analog 2.4 GHz
Included Transmitters
4 x Clip-On with Microphone
Diversity
Non-Diversity
Max Operating Range
98.4' / 30 m (Line of Sight)
Receiver Type
Camera-Mount / Beltpack
Microphone Type
Integrated
Polar Pattern
Omnidirectional



System












































Wireless Technology
Analog 2.4 GHz
Included Transmitters
4 x Clip-On with Microphone
Diversity
Non-Diversity
Max Operating Range
98.4' / 30 m (Line of Sight)
Max Transmitters per Band
4
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility
Modulation
GFSK
SNR
>78 dB



Receiver












































































Receiver Type
Camera-Mount / Beltpack
Mounting Options
Belt Clip (with Included Hardware)
Antenna
Internal
Number of Audio Channels
4
Audio I/O
1 x 1/8" / 3.5 mm TRRS Unbalanced Output
Frequency Response
50 Hz to 16 kHz
Network I/O
None
USB/Lightning Connectivity
USB-C Female (Charging)
RF Output Power
10 mW
Power Requirements
Battery
Battery Type
1 x Built-In Rechargeable
Internal Battery Capacity
200 mAh
Battery Charging Time
2 Hours
Approx. Battery Life
7 Hours
DC Input Power
3.7 VDC
Display & Indicators
LED
Dimensions
0.8 x 2.6 x 0.5" / 20.2 x 65 x 12.8 mm
Weight
0.6 oz / 18 g



Transmitter








































































Transmitter Type
Clip-On with Microphone
RF Output Power
< 10 mW
Audio I/O
None
Muting
Off/On Switch
Auto-Level Control
No
Frequency Response
50 Hz to 16 kHz
Sync Method
2.4 GHz QPSK
Antenna
Internal
Power Requirements
Battery
Battery Type
1 x Built-In Rechargeable
Internal Battery Capacity
110 mAh
Battery Charging Time
2 Hours
Approx. Battery Life
7 Hours
USB/Lightning I/O
USB-C (Charging)
Display & Indicators
LED
Dimensions
0.7 x 2.3 x 0.4" / 17.7 x 59 x 10 mm
Weight
0.4 oz / 12.5 g



Microphone




























Microphone Type
Integrated
Sound Field
Mono
Polar Pattern
Omnidirectional
Frequency Range
50 Hz to 16 kHz
SNR
78 dB
Sensitivity
-42 dB

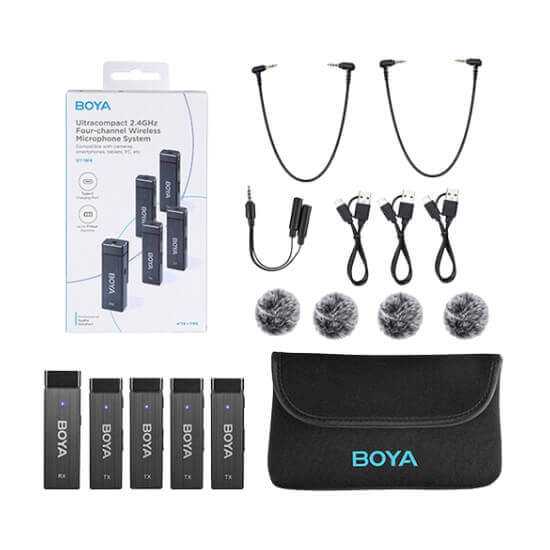

Isi Dalam Box:



  • BOYA BY-W4

  • 4 x Transmitter

  • Receiver

  • 3.5mm TRRS to TRS Cable

  • 3.5mm TRRS Cable

  • 3.5mm TRRS Male to Dual TRRS Female Cable

  • 3 x USB-C Charging Cable

  • 4 x Furry Windscreen

  • Carrying Pouch
