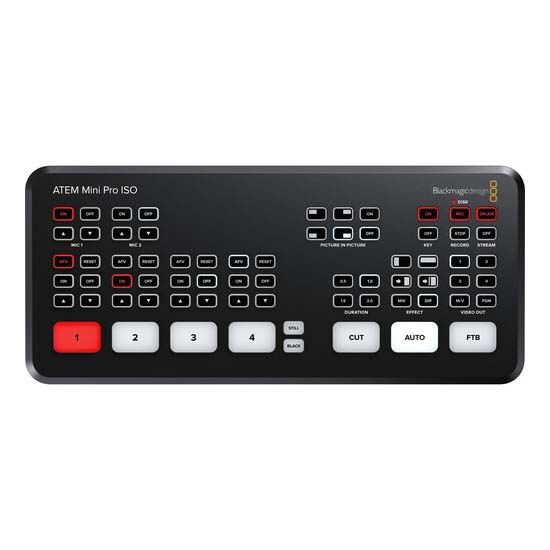

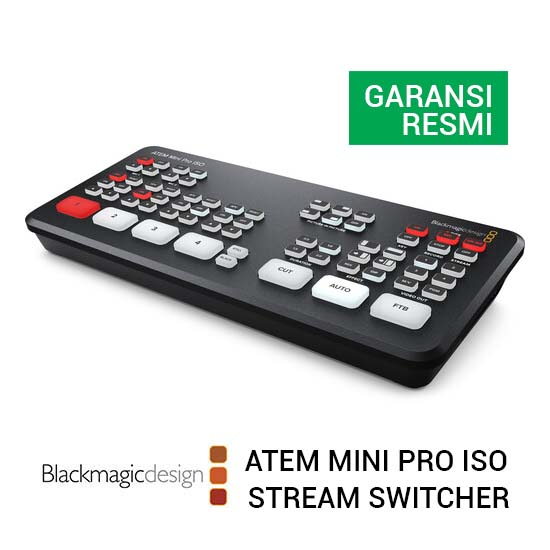

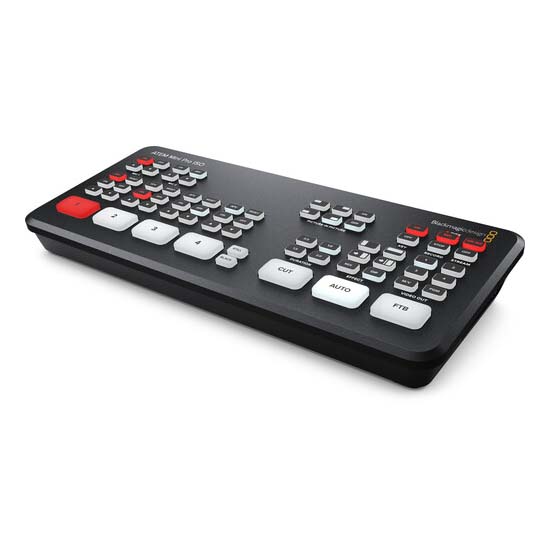

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher dengan 4-input live production switcher, panel kontrol terintegrasi yang dirancang untuk streaming langsung multikamera hingga video HD ke internet melalui output Ethernet. ATEM Mini Pro ISO memiliki fitur output USB yang memungkinkan Anda untuk merekam output program serta merekam input HDMI individu ke drive USB eksternal (tidak termasuk). Selain merekam program stream dan input individual, ATEM Mini Pro ISO juga merekam input audio dan audio analog yang disematkan, menghasilkan file proyek DaVinci Resolve dari streaming langsung Anda. Ini memungkinkan Anda untuk membawa live production Anda ke DaVinci Resolve untuk membuat tweak atau penyesuaian menggunakan materi sumber yang sudah ada di drive USB Anda.

ATEM Mini Pro ISO mempertahankan ukuran, tata letak tombol, dan koneksi antarmuka panel belakang yang sama dengan ATEM Mini Pro, dengan elektronik baru yang memungkinkan perekaman ISO dan pembuatan file proyek DaVinci. ATEM Mini Pro ISO mendukung semua fitur yang sama dengan ATEM Mini Pro termasuk keyer upstream dan downstream, advanced chroma keyer, dua linear/luma keyer, DVE transition keyer, pattern generator, dan color generator. Ada juga dukungan media player untuk mengisi dan gambar utama, yang mendukung hingga 20 gambar dalam format PNG, TGA, BMP, JPEG, dan TIFF. ATEM Software Control Panel digunakan untuk kontrol dan konfigurasi, dan memungkinkan Anda untuk memantau kecepatan data, pengukur audio, konfigurasi, dan status live feed Anda. Dan Anda dapat menggunakan panel untuk mengatur streaming ke Blackmagic Design Streaming Bridge opsional di mana saja di dunia, selama terhubung ke internet.

General

• Connecting a USB drive to the ATEM Mini Pro ISO’s USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program

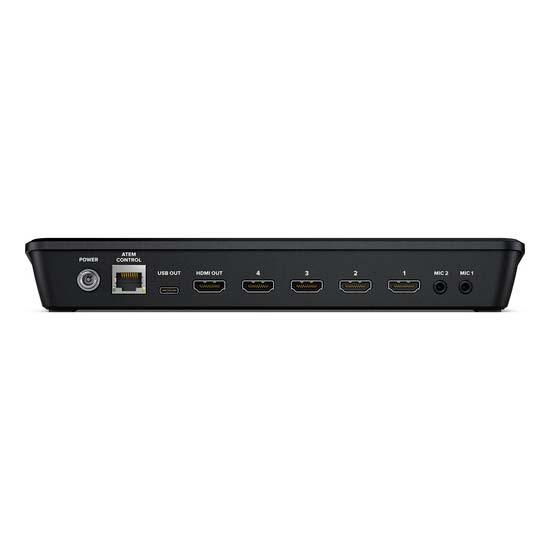

• The device has the same footprint, layout, and connections of the ATEM Mini Pro
• Stream video up to 1080p HD
• Quick stream, on-air, and record buttons
• Hardware encoder so there’s no need for additional streaming software
• Control and configure timecode, stream status
• Full support and control features for BMPCC 6K/4K cameras
• Simultaneous USB recording
• Integration with MultiDock for live hard drive switching
• Customize advanced settings with XML files
• Software multiview with program previews, graphics, record status, on-air status, and audio meters
• Program preview input and output buttons
• Tally light control for BMPCC 6K/4K cameras
• Automatic timecode sync for all cameras

Transitions

Available transitions include:

• Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.
• Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
• Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
• Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.
• DVE: With the powerful built-in digital video effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the upstream keyer. You can use the luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

• Luma key: Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.
• Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.
• Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.
• Pattern key: Combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

ATEM Mini switcher menyertakan satu downstream keyer, sehingga Anda dapat menambahkan grafik berkualitas tinggi seperti logo, bug, dan judul dari pemutar media bawaan melalui live stream program output. Downstream keyer adalah lapisan terakhir dari keying, sehingga mereka melapisi semua video yang dialihkan ke output program utama.

Audio Mixer

Mixer audio internal memungkinkan Anda mengontrol kamera dan audio eksternal dengan tingkat presisi dan penyesuaian keseimbangan pada keenam input audio dan dua channel yang tersedia. Mixer ini memiliki fitur on/off dan audio-follow-video yang dapat dipilih per channel, ditambah lagi memiliki kontrol penguatan terpisah per channel pengukuran level dan peak, dan peningkatan audio Fairlight baru seperti compressor, gate, limiter, enam bands parametric EQ, dan master gain control.

Monitor Output

Output monitor HDMI memungkinkan Anda melihat sumber, grafik, preview, dan output program pada single screen.

Media Player

Eliminate external character generator dengan menyimpan hingga 20 file grafik RGBA berkualitas broadcast di media pool. Satu media player muncul sebagai sumber input untuk switcher Anda. Anda dapat beralih ke grafik sebagai video full-frame, atau memasukkannya ke keyer untuk overlay video. Format gambar populer seperti PNG, TGA, BMP, GIF, JPEG, dan TIFF didukung.
