Saramonic BMCC-A01 DSLR Audio Adapter
Saramonic BMCC-A01 Audio Adapter for Blackmagic Cinema Camera merupakan Adapter audio XLR 2-channel yang yang dilengkapi fitur phantom power control dan dirancang khusus untuk Blackmagic Cinema Camera. BMCC-A01 memungkinkan Anda menghubungkan mikrofon, wireless microphone, digital recorder, external audio mixer, soundboard, dan lebih banyak lagi ke BMCC melalui two balanced XLR input dan dua 1/4″ output.
- -18 to +3 dB in 3 dB increments
- Level controls allow you to balance both input level
- Phantom power switch allows you to select 0, 12, or 48V of phantom power
- Auto Gain Control switch reduces noise during quiet moments of recording by
- cutting our your camera’s Auto Gain Control function

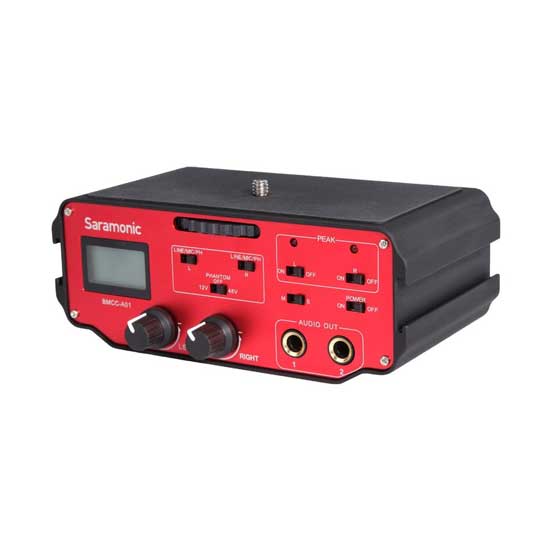

Detail Saramonic BMCC-A01
Fitur Utama Saramonic BMCC-A01 DSLR Audio Adapter
- 2-channel XLR audio adapter,dengan desain khusus untuk Blackmagic Camera.
- cocok untuk berbagai macam perangkat audio profesional seperti XLR mic, wireless mic, boom mic dan mixing board dapat dihubungkan ke kamera melalui adapter.
- Audio dari mikrofon Anda akan diteruskan ke kamera Anda oleh BMCC-A01 dengan atau tanpa menggunakan baterai 9V.
- Advanced function seperti level meter, power phantom 12V / 48V dan tersedia pula indikator LED yang bekerja dengan menggunakan baterai.
- It allows you to record high quality audio directly to the camera, eliminating the need of a separate audio recording.
- Mikrofon ini memungkinkan Anda merekam audio berkualitas tinggi langsung ke kamera, sehingga tidak memerlukan rekaman audio secara terpisah.
Spesifikasi Saramonic BMCC-A01 DSLR Audio Adapter
Connectors | 2x XLR, balanced input 2x 1/4″ (6.3 mm) TRS, audio output |
Controls and Indicators | 1x Switch, LIN/MIC/PH left 1x Switch, LIN/MIC/PH right 1x Switch, Phantom Power 12V/48V/Off 2x Switch, Peak LED light On/Off, Left/Right 1x Switch, Main Power On/Off 1x Switch, Mono/Stereo output 2x Knob, Trim Controls Left/Right 2x LED red, Overload 1x Level Meter |
Input Level | MIC: 0 dB on the Level meter at -44 dBu input LINE: 0 dB on the Level meter at +10 dBu input |
Gain | Unity |
Phantom Power | 0, 12, or 48 V |
Frequency Response | 10 Hz to 100 kHz (+/-0.5 dB) |
THD | Less than 0.01% @ 1 kHz, -30 dBu input |
SNR | 80 dB @ 1 kHz, -30 dBu input |
Level Metering | -18 to +3 dB in 3 dB increments |
Power Requirements | 9 V battery (not included) |
Battery Life | Alkaline: 6 hours, typical Lithium: 12 hours, typical |
Dimensions | 6.1 x 3.9 x 2.5″ (15.5 x 9.8 x 6.4 cm) |
Weight | 21.7 oz (615 g) |
