Azden 330LX Dual-Channel Wireless System

Rp 12.415.500

  • 188 Selectable UHF Frequencies
  • Wireless lavalier and plug-in transmitter combo
  • New, Pivoting diversity High-Gain Antenna
  • Approx. Working Range 5 – 8 meter
  • Garansi Resmi 1 Tahun.

Stok Sementara Kosong

Masukkan NOMOR HP Anda, kami akan hubungi Anda saat barang tersedia

Stok habis

Berat : 2kg
SKU: 1261645 , ,
Brand:

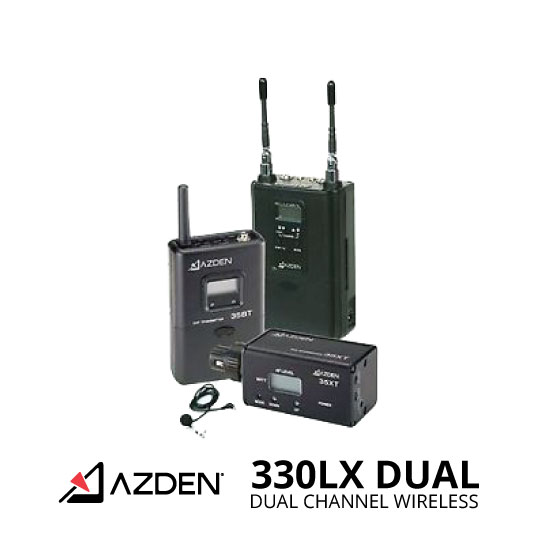

Azden 330LX Dual-Channel Wireless System

Jual Azden 330LX Dual-Channel Wireless SystemAzden 330LX Dual-Channel Wireless System dengan frekuensi UHF 188, antena gain tinggi dan LCD display digital, dijamin memenuhi tuntutan video profesional.

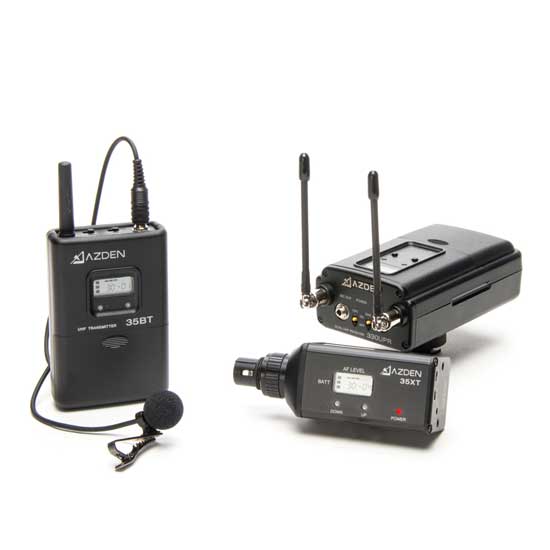

Azden 330LX Dual-Channel Wireless System merupakan dual-channel UHF sistem mikrofon nirkabel yang kuat untuk diaplikasikan pada mount kamera. Sistem ini terdiri dari Azden 35BT body-pack transmitters, EX-503L lavalier mikrofon, plug-in transmitter 35XT dan 330UPR portable dual-channel receiver. disertakan juga body-pack dan plug-in transmitters yang memungkinkan pengguna untuk menggunakan mikrofon dengan lebih tepat dan untuk pekerjaan yang tepat.

Dengan set fitur yang mencakup frekuensi UHF 188, antena gain tinggi dan LCD display digital, 330LX dijamin untuk memenuhi tuntutan konsumen dan aplikasi video profesional. 330 UPR penerima memiliki fitur utama dan headphone monitor output dan shoe mount adaptor bisa dilepas. Kedua pemancar dan penerima beroperasi dengan baterai AA alkaline standar (baterai tidak termasuk)

Fitur Azden 330LX Dual-Channel Wireless System

  • 188 Selectable UHF Frequencies
  • Wireless lavalier and plug-in transmitter combo
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/ Multi-function Readout
  • Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 “AA” batteries

Spesifikasi Azden 330LX Dual-Channel Wireless System

System
Type of System Portable UHF Combo System
RF Carrier Frequency Range UHF 188 Freq. (566.125-589.875 MHz)
Approx. Working Range 5 – 8 meter
Overall Frequency Response 50 to 15kHz
Signal-to-Noise Ratio >84dB (100% Deviation)
# Of Channels 188
# Of Simultaneous Systems 9
Receiver

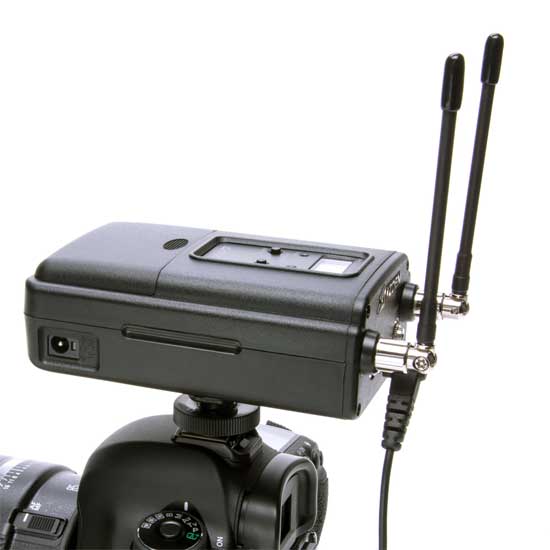

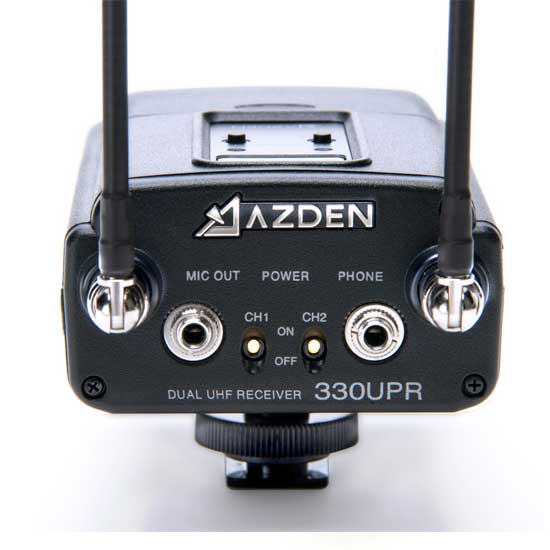

Type of Receiver 330UPR On-Camera Dual Receiver
Type of Outputs MIC Level – Balanced
1/8″ (3.5mm) Mini-Jack -28 dBm (100% Deviation – Mic Level)
Headphone Monitoring Yes 1/8″ (3.5mm) Mini-Jack
Battery Type/Approx. Life 2x “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
2x “AA” rechargeable Ni-MH (2 x 1.2V)
Display LCD Digital
Mounting Options Attached/Removable Shoe-Mount
Antenna Type 2x Pivoting Diversity High-Gain Antenna
Dimensions (WxHxD) 2.87 x 4.45 x 1.59″ (73 x 113 x 40.5mm)
Weight 10.2oz (290g) w/batteries
Transmitter

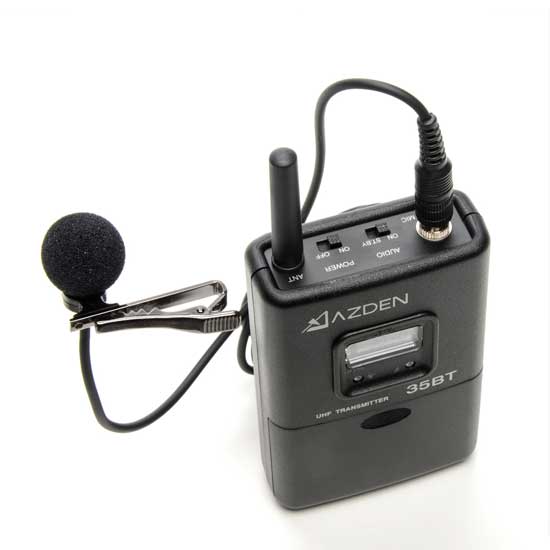

Type of Transmitter 35BT Bodypack Transmitter
Microphone EX-503 Lavalier
Battery Type/Approx. Life 2x “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
2x “AA” rechargeable Ni-MH (2 x 1.2V)
Deviation +/- 40kHz @ 1kHz Modulation
MIC Input – 11dBm
Mute Switch On/Off
RF Power 25mW
Display LCD Digital
Dimensions (WxHxD) 2.52 x 3.93 x 1.16″ (64 x 100 x 27mm)
Weight 6oz (170g)
Transmitter

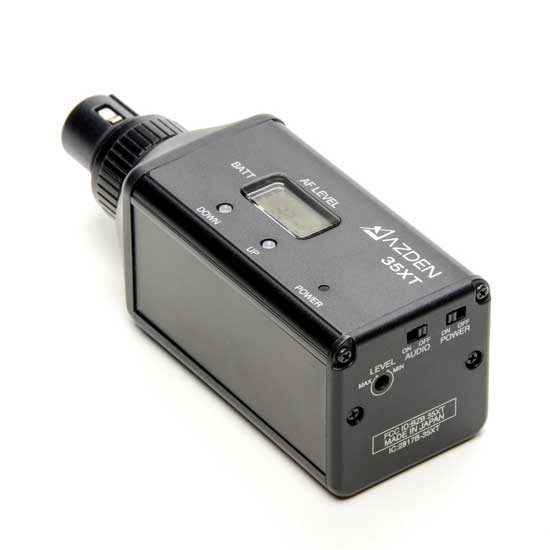

Type of Transmitter 35XT Plug-in Transmitter
Input Connector 3-pin XLR
Battery 2x “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
2x “AA” rechargeable Ni-MH (2 x 1.2V)
Antenna Internal
Maximum Input Level -16dBm
Audio Adjust. Range: -65dBm to 46dBm
Input Impedance 25k Ohms
Mute Switch On/Off
RF Power 25mW
Display LCD Digital
Antenna Dimensions (WxHxL) 1.57 x 1.57 x 4.49″ (40 x 40 x 114mm)
Weight 6.35oz (180g)

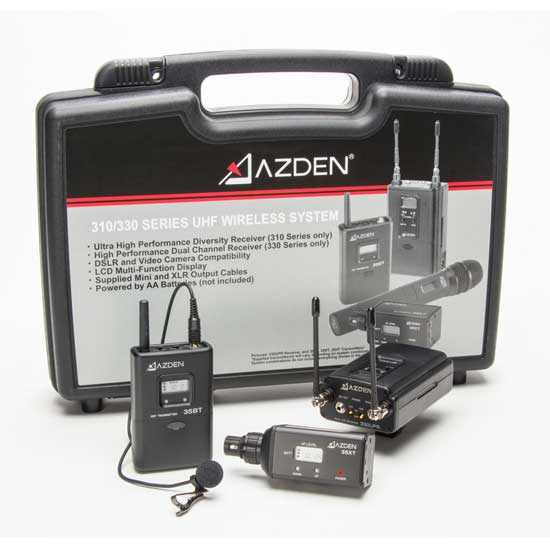

  • 330UPR receiver

  • Shoe mount

  • Mounting strips

  • MX-2 dual XLR output cable

  • 3.5mm stereo output cable

  • 35BT body-pack transmitters

  • EX-503L omni-directional lapel microphones

  • 35XT plug-in transmitter

  • Manual

  • Hard shell carrying case
