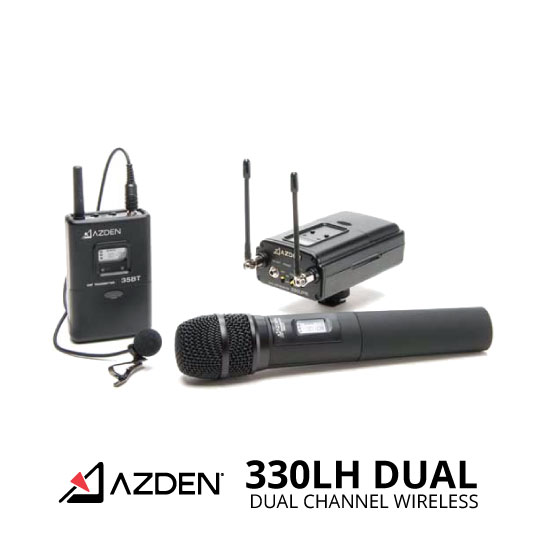

Azden 330LH Dual-Channel Wireless System

Azden 330LH Dual-Channel Wireless System

Azden 330LH Dual-Channel Wireless System dilengkapi dengan fitur frekuensi UHF 188, antena gain tinggi dan LCD display digital.

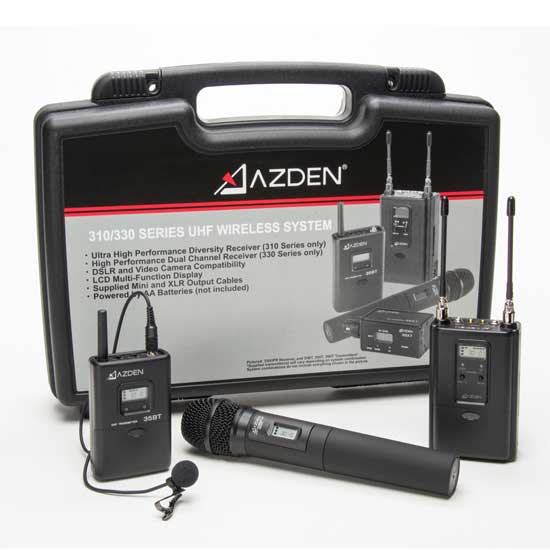

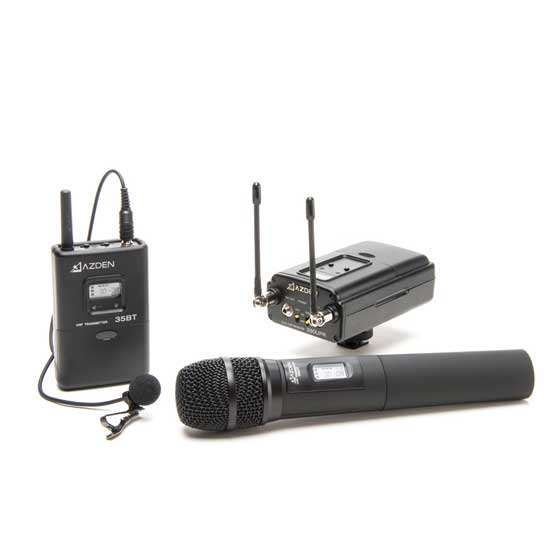

Azden 330LH Dual-Channel Wireless System merupakan dual-channel UHF sistem mikrofon nirkabel yang kuat untuk diaplikasikan ke mount kamera. Sistem ini terdiri dari Azden 35BT body-pack transmitters, EX-503L lavalier mikrofon, 35HT handheld microphone/transmitter dan receiver 330UPR dual-channel portabel. disertakan juga body-pack dan handheld transmitters yang memungkinkan pengguna untuk lebih fleksibilitas menggunakan mikrofon dengan tepat dan untuk pekerjaan yang tepat juga.

Dengan set fitur yang mencakup frekuensi UHF 188, antena gain tinggi dan LCD display digital, 330LH dijamin untuk memenuhi tuntutan konsumen dan aplikasi video profesional. 330 UPR penerima memiliki fitur utama dan headphone monitor output dan shoe mount adaptor bisa dilepas. pemancar dan penerima beroperasi dengan baterai AA alkaline standar (baterai tidak termasuk)

Fitur Azden 330LH Dual-Channel Wireless System

• 188 Selectable UHF Frequencies
• Wireless lavalier and handheld transmitter combo
• New, Pivoting diversity High-Gain Antenna
• Digital LCD Display w/ Multi-function Readout
• Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
• Headphone Output on Receiver
• Attached/Removable Shoe-Mount
• Powered by 2 “AA” batteries

Spesifikasi Azden 330LH Dual-Channel Wireless System

System
Type of System	Portable UHF Dual-Channel Combo System
RF Carrier Frequency Range	UHF 188 Freq. (566.125-589.875 MHz)
Approx. Working Range	200 – 300′
Overall Frequency Response	50 to 15kHz
Signal-to-Noise Ratio	>84dB (100% Deviation)
# Of Channels	188
# Of Simultaneous Systems	9

Receiver

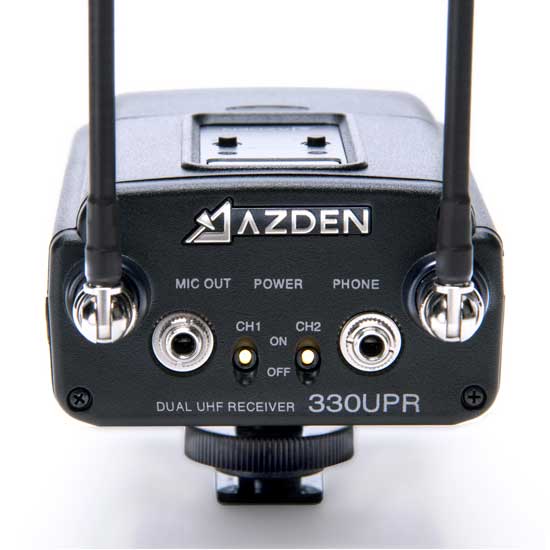

Type of Receiver	330UPR On-Camera Dual-Channel Receiver
Type of Outputs	MIC Level – Balanced 1/8″ (3.5mm) Mini-Jack -28 dBm (100% Deviation – Mic Level)
Headphone Monitoring	Yes 1/8″ (3.5mm) Mini-Jack
Battery Type/Approx. Life	2x “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime 2x “AA” rechargeable Ni-MH (2 x 1.2V)
Display	LCD Digital
Mounting Options	Attached/Removable Shoe-Mount
Antenna Type	2x Pivoting Diversity High-Gain Antenna
Dimensions (WxHxD)	2.87 x 4.45 x 1.59″ (73 x 113 x 40.5mm)
Weight	10.2oz (290g) w/batteries

Transmitter

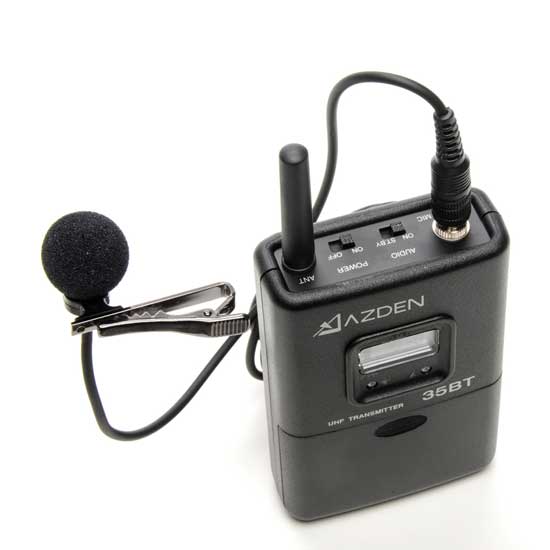

Type of Transmitter	35BT Bodypack Transmitter
Microphone	EX-503 Lavalier
Battery Type/Approx. Life	2x “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime 2x “AA” rechargeable Ni-MH (2 x 1.2V)
Deviation	+/- 40kHz @ 1kHz Modulation MIC Input – 11dBm
Mute Switch	On/Off
RF Power	25mW
Display	LCD Digital
Dimensions (WxHxD)	2.52 x 3.93 x 1.16″ (64 x 100 x 27mm)
Weight	6oz (170g)

Transmitter
Type of Transmitter	35HT Handheld Transmitter
Battery	2x “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime 2x “AA” rechargeable Ni-MH (2 x 1.2V)
Deviation	±40kHz @ 1kHz Modulation MIC Input – 11dBm
Mute Switch	On/Off
RF Power	25mW
Display	LCD Digital
Dimensions (LxDiameter)	9.2 x 1.89″ (234.5 x 48mm)
Weight	9.5oz (270g)
