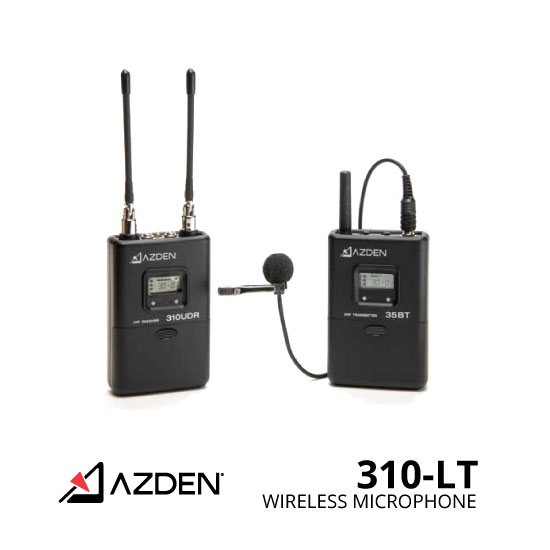

Azden 310LT Wireless Microphone
The Azden 310LT

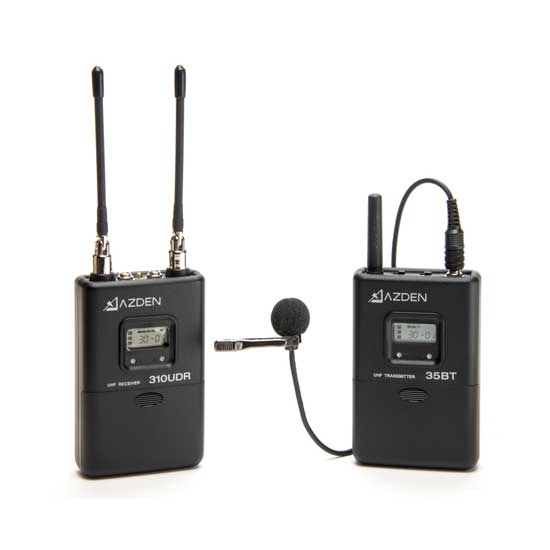

The Azden 310LT UHF Kamera Bodypack Sistem yang kuat namun terjangkau UHF sistem mikrofon nirkabe. Sistem ini terdiri dari Azden ini 35BT bodypack transmitter , EX – 503L lavalier mikrofon dan kamera 310UDR mount penerima. Dengan set fitur yang mencakup frekuensi 188 UHF, antena pivoting gain tinggi, dan LCD display digital , 310LT dijamin untuk memenuhi tuntutan konsumen dan aplikasi video profesional. The 310UDR penerima memiliki fitur utama dan headphone output dan shoe mount adaptor dapat dilepas. Kedua pemancar dan penerima beroperasi pada baterai AA alkaline standar (tidak termasuk) .
Fitur Azden 310LT Wireless Microphone
- 188 Selectable UHF Frequencies
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/ Multifunction Readout
- Mini-Jack Out w/Supplied 24″ Mini-to-XLR Cable
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 “AA” Batteries (not included)
- 1 Tahun Garansi Resmi.
Spesifikasi Azden 310LT Wireless Microphone

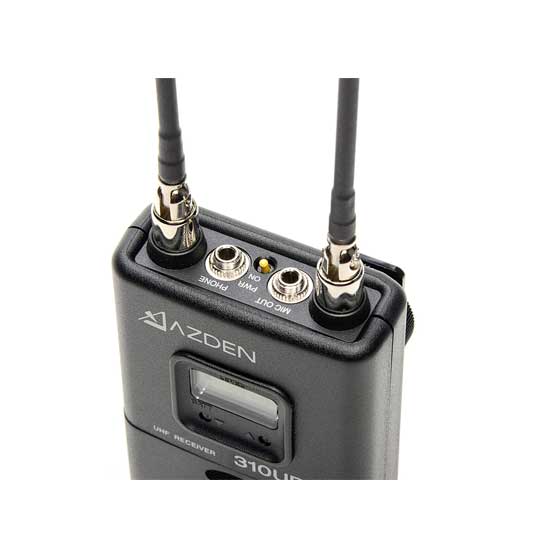

| 310UDR Receiver | |
| Freq. Range | UHF 188 Frequencies (566.125 – 589.875MHz) |
| Type of Reception | FM |
| Oscillator | PLL Synthesized |
| RF Squelch Level | -95dBm |
| Frequency Response | 50Hz – 15kHz |
| S/N Ratio | >84dB 100% Dev. |
| Output Impedance | 1k Ohms |
| Audio Out | MIC Level – Balanced – 3.5mm Mini-Jack |
| -28 dBm – 100% deviation | |
| Batteries | 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime |
| 2 “AA” rechargeable Ni-MH (2 x 1.2V) | |
| Dimensi | 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm) |
| Weight | Approx. 6.7oz (190g) w/batteries |
| 35BT Transmitter | |
| Freq. Range | UHF 188 Selec. Freq. (566.125-589.875MHz) |
| Oscillator | PLL Synthesized |
| RF Power | 25mW |
| Frequency Response | 50Hz – 15kHz |
| Max. Deviation | ±40kHz @ 1kHz Mod., MIC Input – 11dBm |
| Batteries: | 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime |
| 2 “AA” rechargeable Ni-MH (2 x 1.2V) | |
| Dimensi | 2.52″W x 3.93″H x 1.16″D (64 x 100 x 27 mm) |
| Weight | Approx. 6oz (170g) w/batteries |

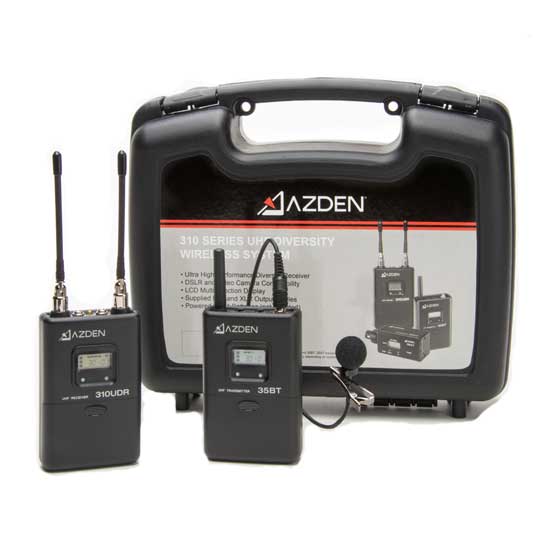

Isi Dalam Kotak :
- 310UDR receiver
- Shoe mount
- Mounting strips
- MX-1 XLR output cable
- 3.5mm mini-jack output cable

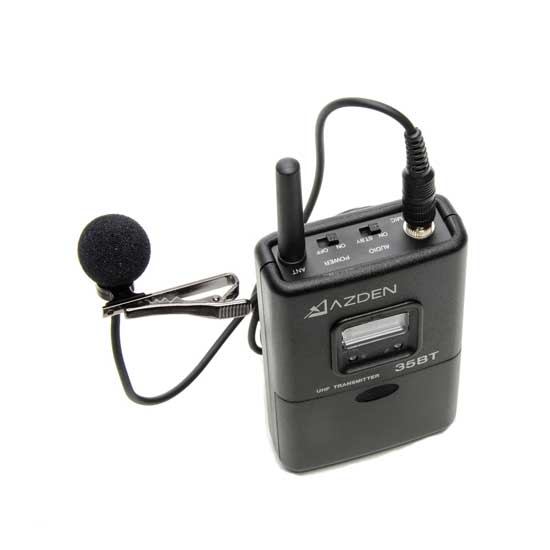

- 35BT body-pack transmitter
- EX-503L omni-directional lapel microphone
- Manual
- Hard shell carrying case
