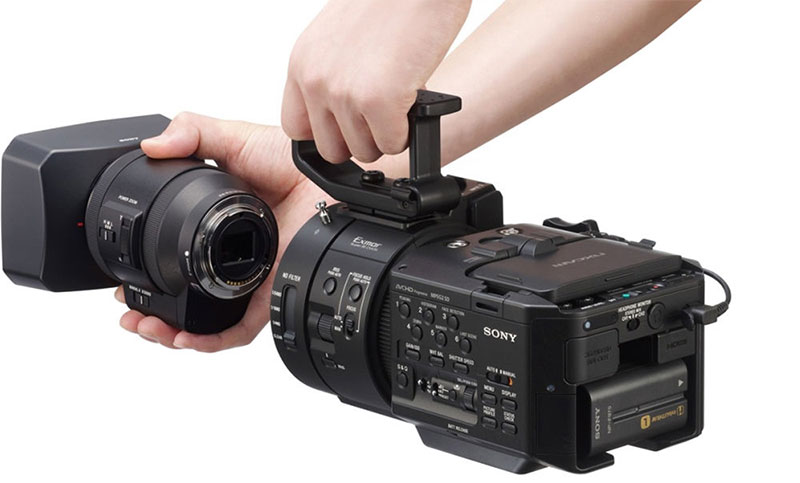

Sony NEX-FS700RH Super 35 HD Camcorder
Sony NEX-FS700RH Super 35 HD Camcorder dengan sensor 4K Exmor Super 35mm CMOS yang mampu merekam video dengan kualitas 1920 x 1080/60p AVCHD 4K/2K 12-Bit RAW ke AXS-R5 Recorder, memiliki lensa ukuran 18-200mm f/3.5-6.3 PZ OSS E-mount.
The Sony NEX-FS700R Super 35 Camcorder with 18-200mm f/3.5-6.3 Lens is an update to Sony’s NEX-FS700U that enables 4K/2K 12-bit RAW output, S-Log2 recording capabilities, and features a Sony 18-200mm f/3.5-6.3 PZ OSS E-mount lens. The NEX-FS700R retains all the features of the NEX-FS700U, including the native 4K sensor, Super Slow Motion recording, built-in ND filters, and CineGamma curves. 4K/2K RAW is recorded to the Sony AXS-R5 Recorder via the HXR-IFR5 Interface Unit, or to compatible third party recorders such as Convergent Design’s Odyssey 7Q via the 3G/HD-SDI output. The HXR-IFR5 Interface Unit and external recorders are sold separately.
- 4K Exmor Super 35mm CMOS Sensor
- Capture 1920 x 1080/60p AVCHD Video
- 4K/2K 12-Bit RAW to AXS-R5 Recorder
- 18-200mm f/3.5-6.3 PZ OSS E-mount Lens
- Up to 960 fps Super Slow Motion
- CineGamma Curves Including S-Log2
- ISO 320 to 64,000
- 3.5″ LCD Screen with VF Attachment
- Dual XLR, HDMI & 3G/HD-SDI Connectivity
- SD/SDHC/SDXC and Memory Stick Duo Slots
Specifications
Camera
| Imager |
Exmor Super35 CMOS sensor |
| Number of pixels |
Total pixels approx. 11.6M
Effective pixels in movie shooting (16:9) approx. 8.3M
Effective pixels in still picture shooting (16:9) approx. 8.4M
(3:2) approx. 7.1M |
| Built-in ND filters |
Clear, 1/4, 1/16, 1/64 |
| Color temperature |
AUTO, ONE PUSH AB, INDOOR (3200K), OUTDOOR (5800K±7 positions), MANU WB TEMP (2300K~15000K, 100K step) |
Zoom Lens
| SELP18200 E mount Lens |
Approx. 11x zoom (Optical)
f=18~200 mm, 35 mm equivalent 30.6~340 mm (16:9), 34.2~380 mm
(3:2) F3.5~6.3
Filter diameter 67 mm Optical Steady Shot installed |
Camera System
| Recording format-Video recording format |
HD MPEG-4 AVC/H.264 AVCHD Ver.2.0
SD MPEG-2 PS |
| Recording format-Audio recording format |
Linear PCM 2ch (48kHz 16-bits) (in HD)
Dolby Digital 2ch (48 kHz 16-bits) |
| Recording mode (Recording bit rate is the total of video and audio)* HD |
PS max 28 Mbps, 1920 × 1080/60p, 50p, 16:9
FX max 24 Mbps, 1920 × 1080/60i, 50i, 30p, 25p, 24p, 16:9
1280 × 720/60p, 50p, 16:9
FH approx. 17 Mbps (ave), 1920 × 1080/60i, 50i, 30p, 25p, 24p, 16:9
1280 × 720/60p, 50p, 16:9
HQ approx. 9 Mbps (ave), 1440 × 1080/60i, 50i, 16:9
LP approx. 5 Mbps (ave), 1440 × 1080/60i, 50i, 16:9 |
| Recording mode (Recording bit rate is the total of video and audio)* SD |
HQ approx. 9 Mbps (ave), 720 × 480/60i, 720 × 576/50i, 16:9, 4:3 |
| Recording mode (Recording bit rate is the total of video and audio)* Recording media |
Flash Memory Unit (HXR-FMU128), MS PRO Duo (Mark2 only),
MS PRO-HG Duo, SD/SDHC/SDXC Class4 and higher |
Input/Output
| Memory card slot |
MS PRO Duo, SD/SDHC/SDXC compatible ×1 |
| 3G HD-SDI OUT |
BNC connecter ×1 |
| HDMI OUT |
HDMI connecter (type A) ×1 |
| COMPONENTOUT |
mini D terminal ×1 |
| VIDEO OUT |
RCA Pin ×1 |
| AUDIO OUT |
RCA Pin ×2 |
| Headphone jack |
Stereo mini jack (ø3.5 mm) ×1 |
| USB jack |
Mini-AB ×1 |
| AUDIO INPUT 1/INPUT 2 |
XLR 3-pin (Female) ×2, LINE/MIC/MIC +48V selectable |
| Remote |
Stereo mini-mini jack (ø2.5 mm) ×1 |
LCD Screen
| Screen size |
8.8 cm (3.5type, 16:9) |
| Total dots (H × W) |
Approx. 921000 dots (1,920 × 480) |
General
| Power supply |
DC7.2 V (Battery Pack), DC7.6 V (AC-DC adaptor) |
| Power consumption |
9.6 W (60i), 8.8 W (50i) |
| Operating temperature |
0 ~ 40°C |
| Storage temperature |
−20 ~ +60°C |
| Dimensions (W × H × D) |
145.0 mm × 178.5 mm × 235.5 mm (including protrusions) |
| Body mass |
1,680 g (3 lb 11 oz) |
| Total mass in recording |
3,220 g (7 lb 2 oz)
(Mass including SELP18200 [optional], Battery [NP-F770], VF w/ large eyecup, handle, ECM-XM1, grip) |
Supplied Accessories
|
AC Adaptor (AC-PW10), Charger (AC-VL1), Rechargeable Battery Pack (NP-F770), Microphone (ECM-XM1), Remote Commander (RMT-845), Component video cable, A/V connecting cable, USB cable, USB Adaptor Cable (VMC-UAM1), Large eyecup, Lens hood with lens cover (Lens cap & Lens hood), Lithium Battery (CR2025), Clock Lithium (Installed) |
Notes
|
* Due to variable bit rate, 28Mbps is the maximum bit rate for HD PS mode, and 24Mbps for HD FX mode. The average bit rate is stated for FH, HQ and LP modes. |
